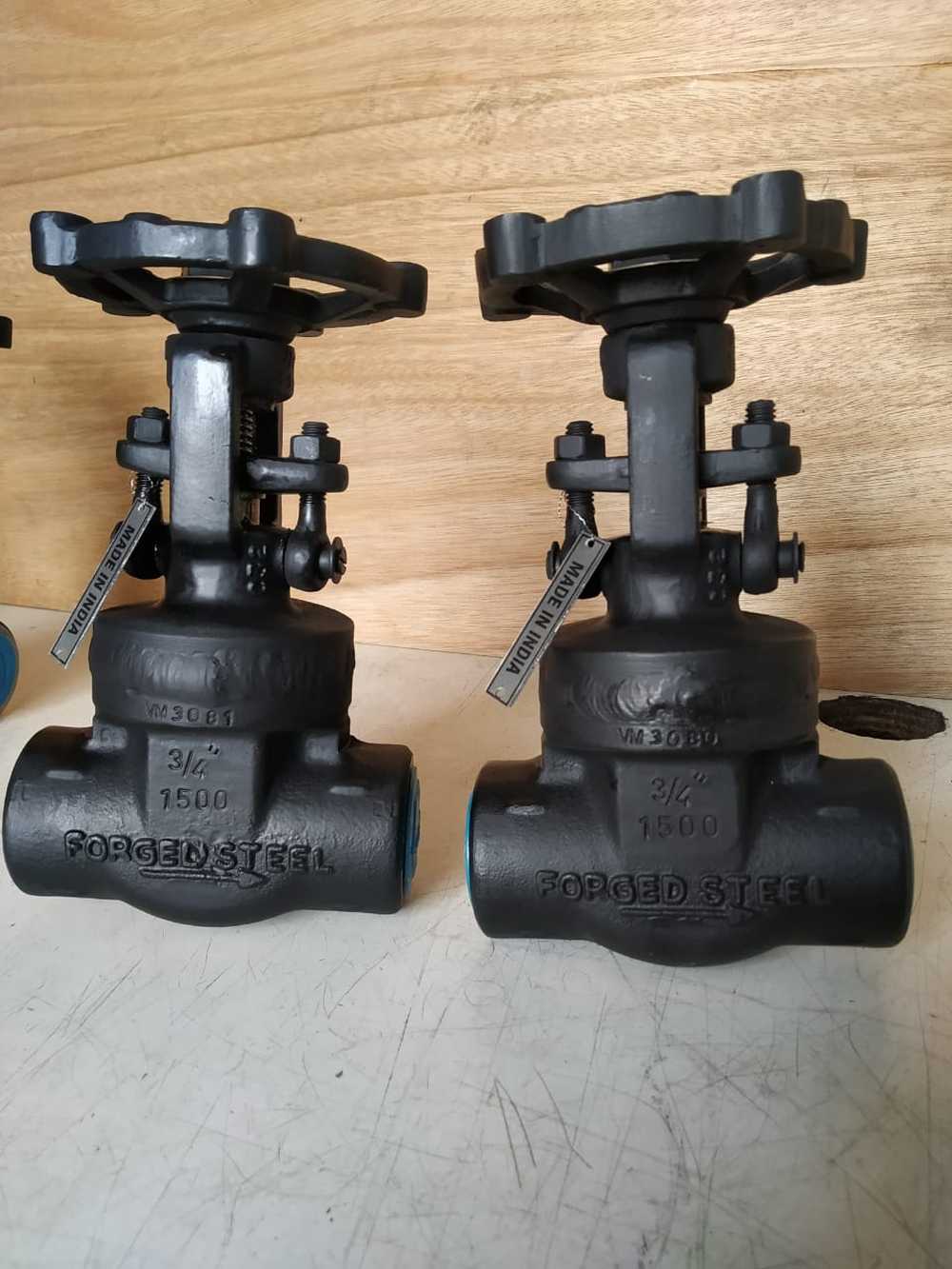

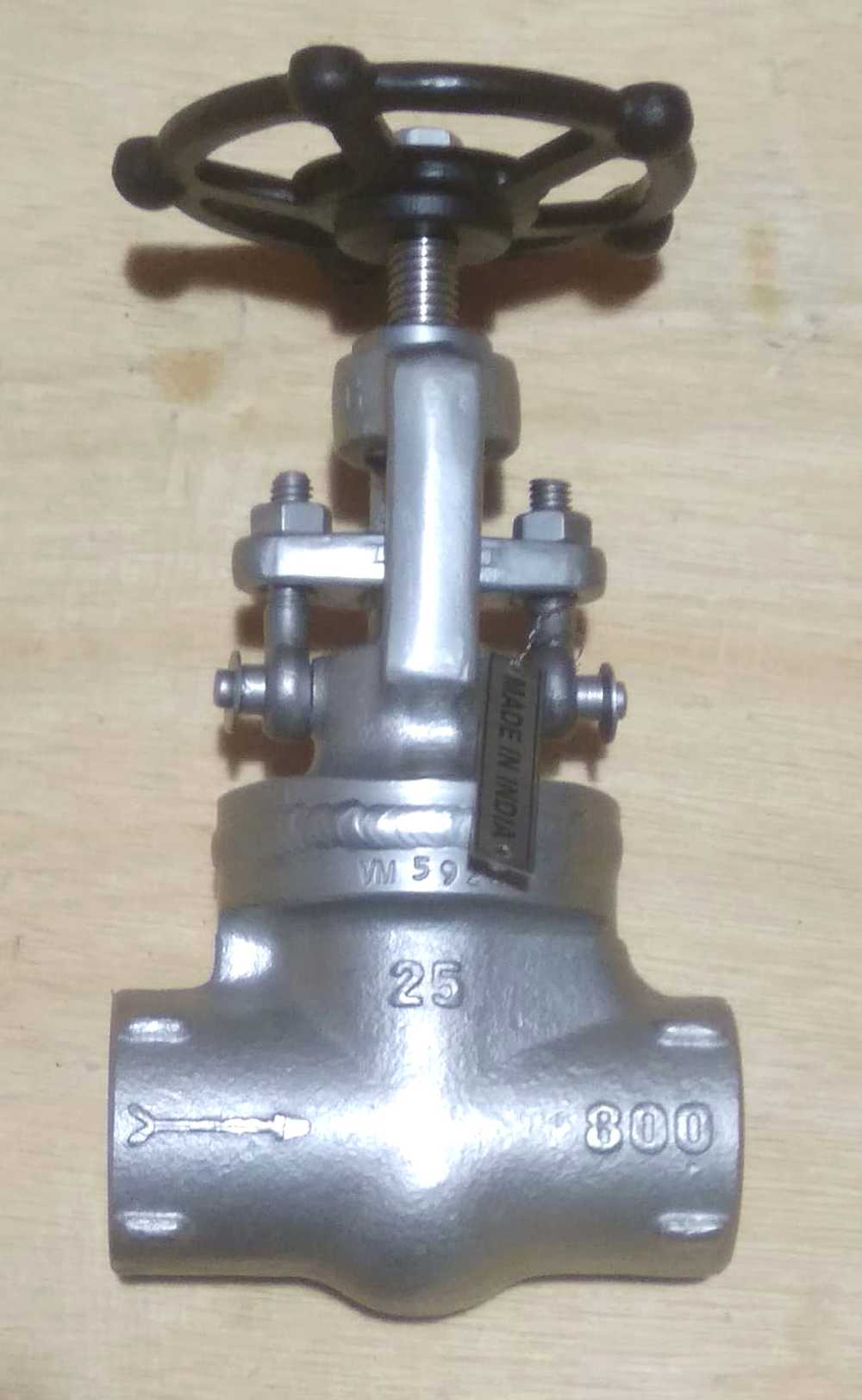

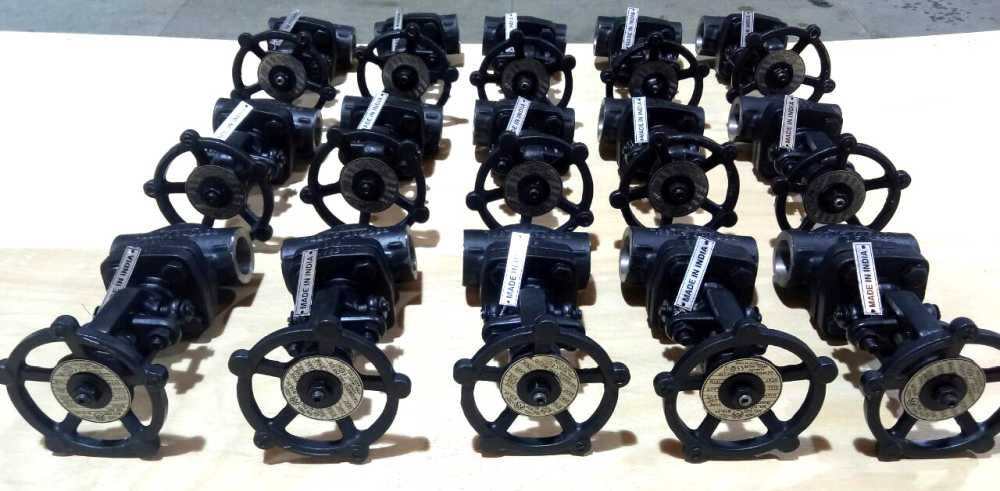

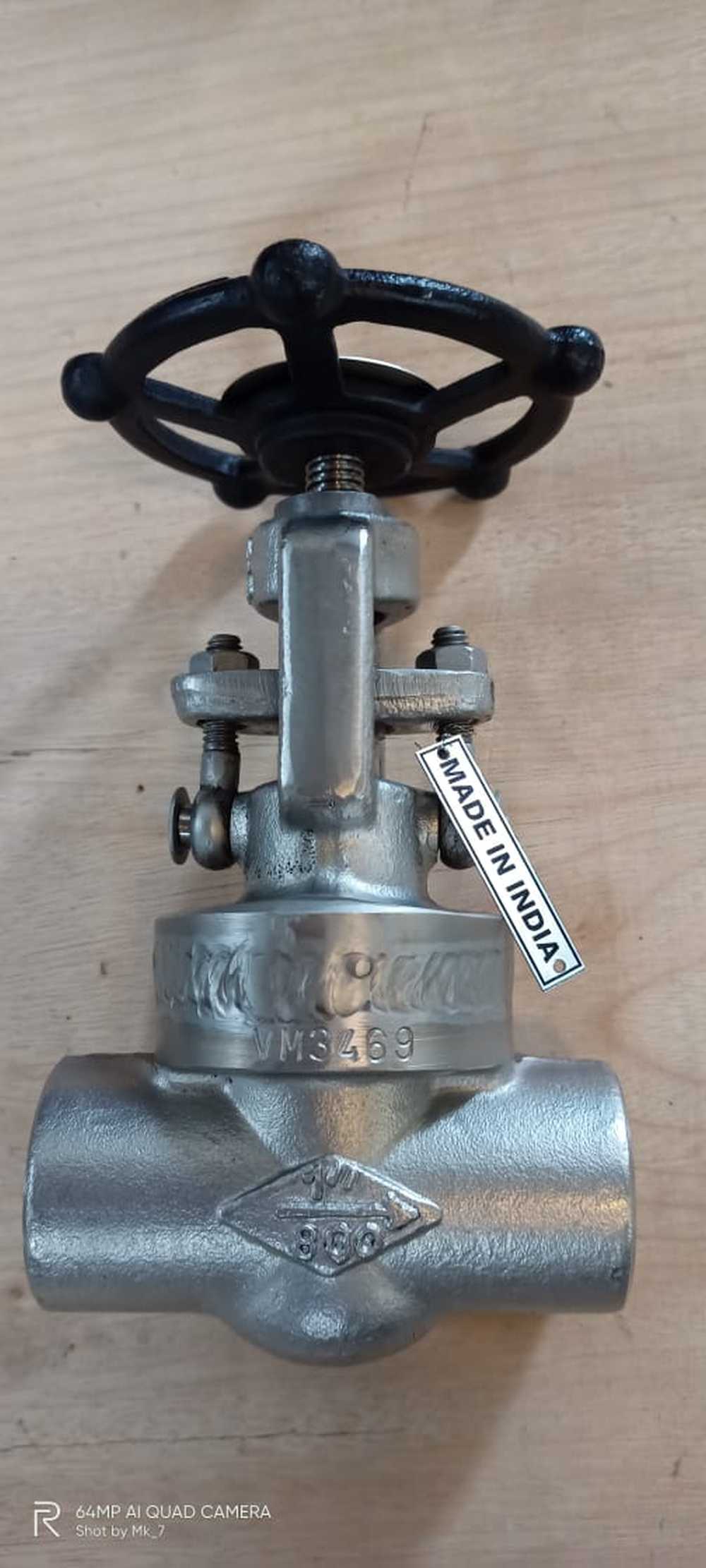

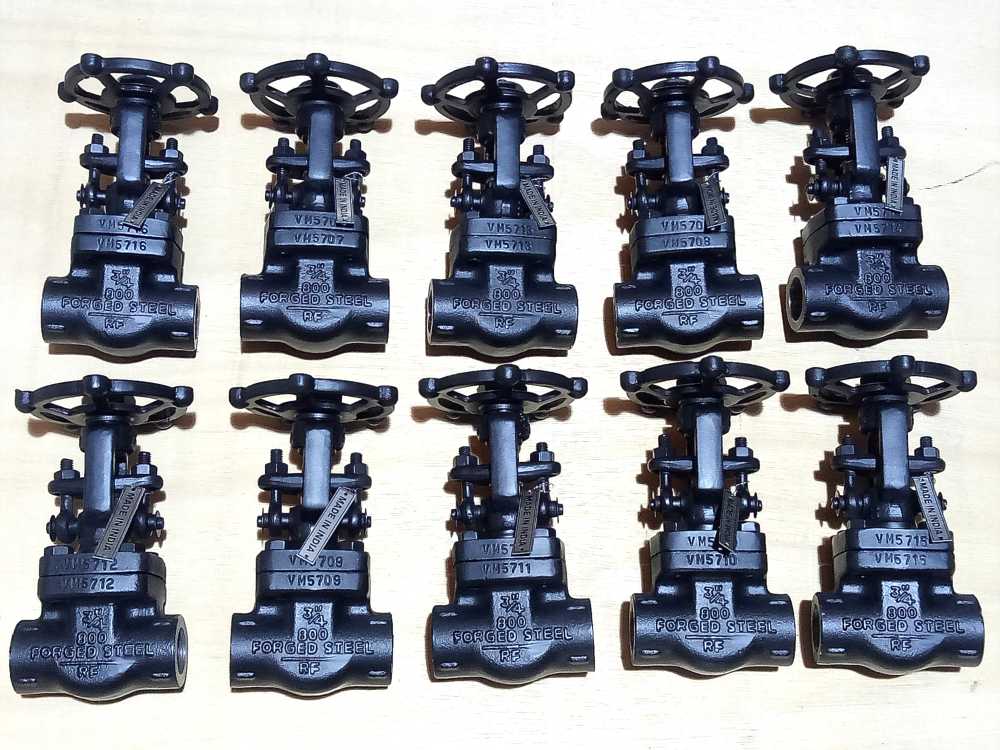

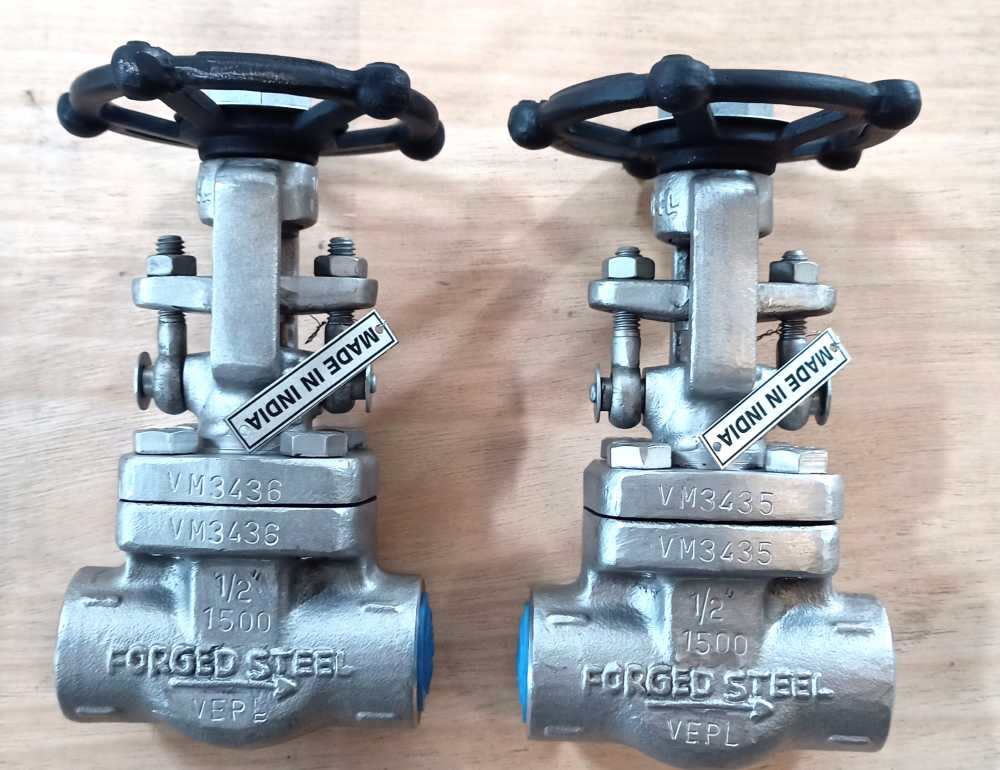

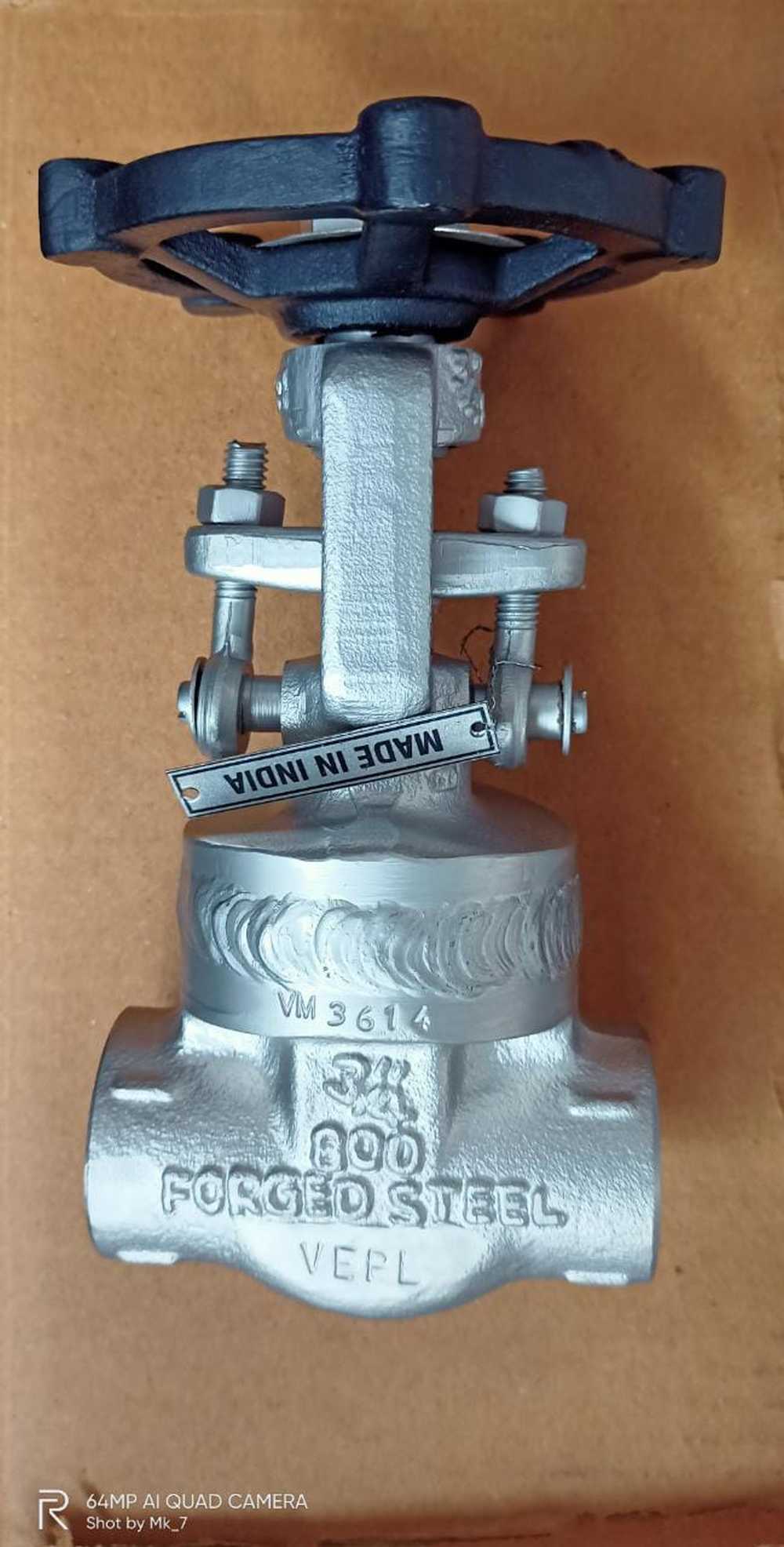

Forged steel valves are manufactured using a process called ‘forging’. Forging is based on the application provide heat to solid blocks of steel up to a suitable temperature and then using mechanical forces to further process the steel into a finished product. This process is makes the valve body much more stronger and tough enough to withstand higher pressure forces.
Due to forging process valve body become strong and tough enough and suitable for the application in pipeline containing high temperature and high-pressure medium, such as fire working medium, nuclear power plant, petrochemical system, high pressure steam line etc.
Size: ½″ up to 2″ (DN 15 up to DN 50)
Pressure Rating (Class): 600#, 800# , 1500# , 2500#
Materials: ASTM A105, ASTM A350 LF2 CL-1, ASTM A182 F11 CL-2 / F304 / F304L / F316 / F316L, MONEL K-400, MONEL K-500
Design Standard: API 602, ISO 17292, ASME B 16.34
MARKING : MSS SP25
Test (Inspection) Standard: API 598

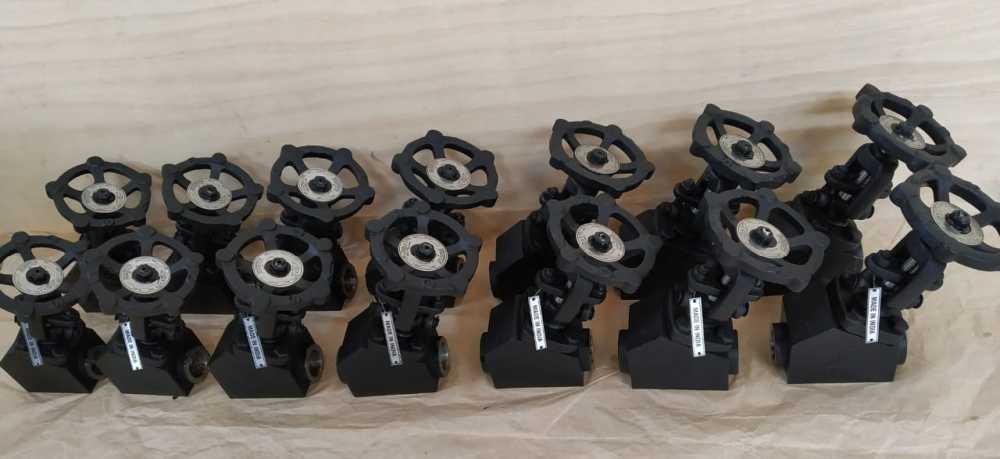

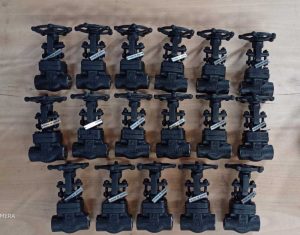

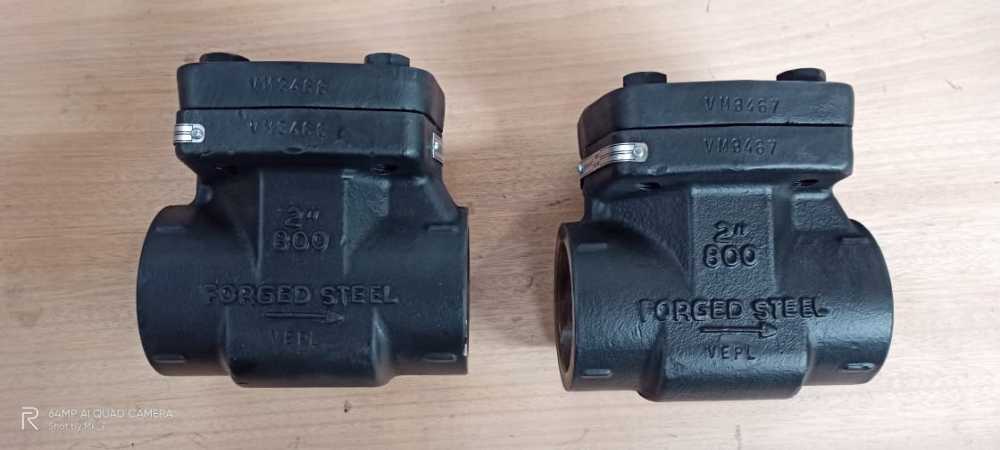

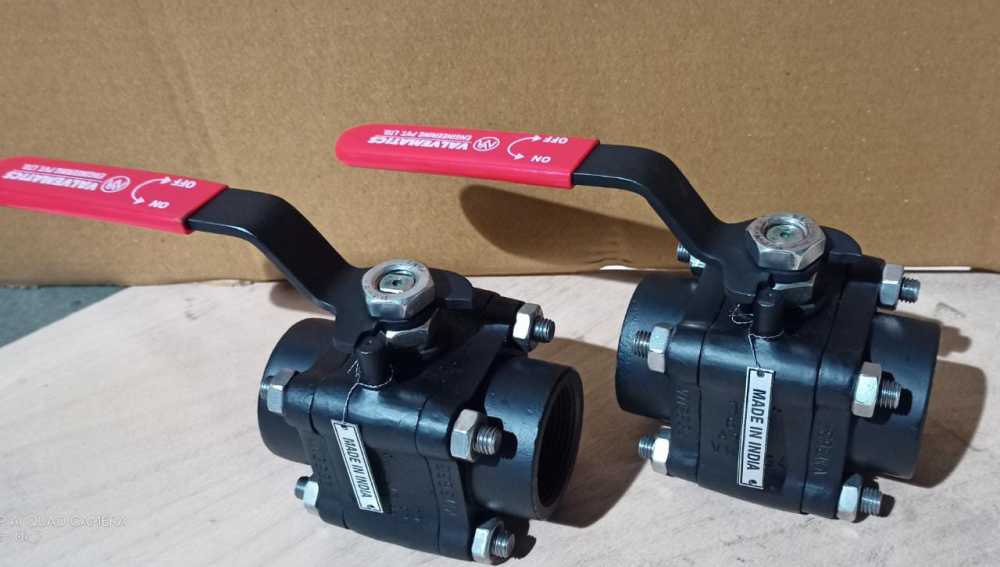

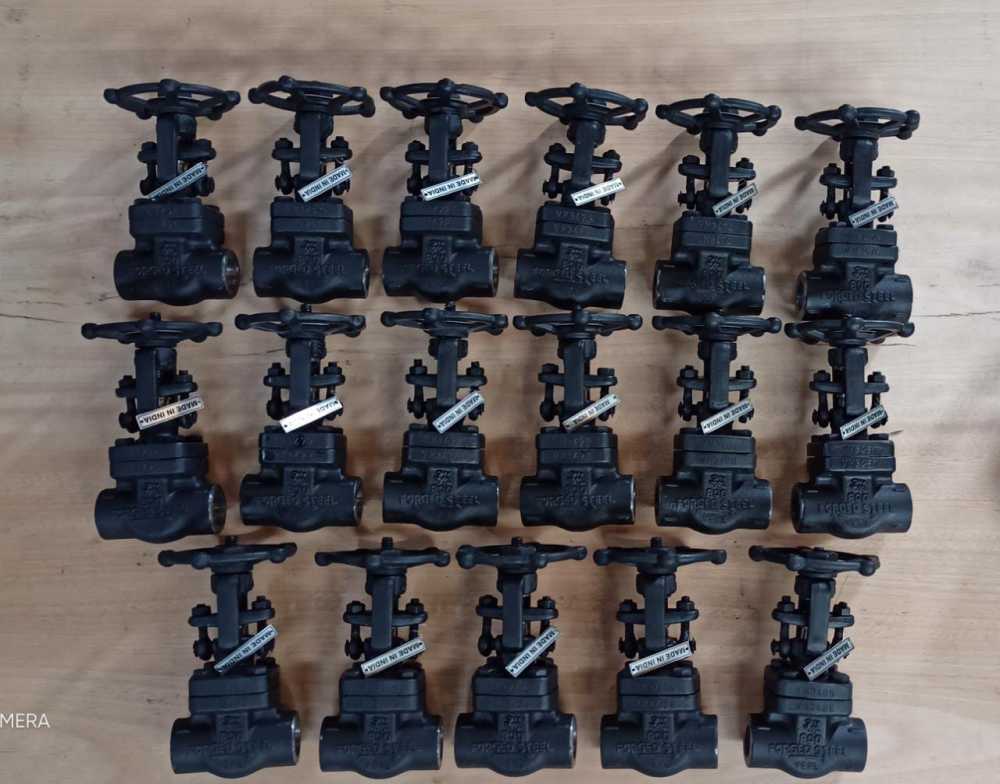

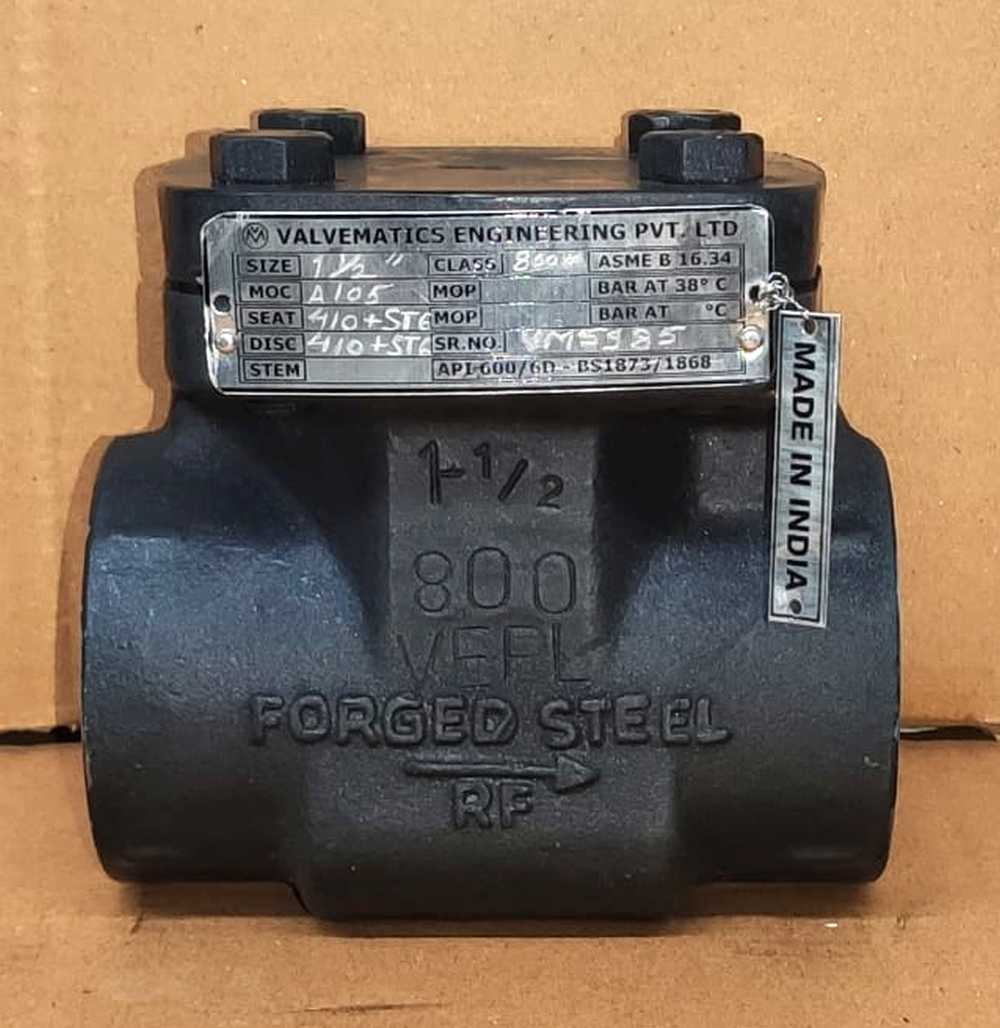

Type: Gate, Globe, Check , Piston Lift Check, Ball Valve, Y-Type Globe, Extended Bonnet Forged Valve
Temperature Rating: –46° C To 650° C
Face To Face Standard: Manufacturing Std / Asme B16.10

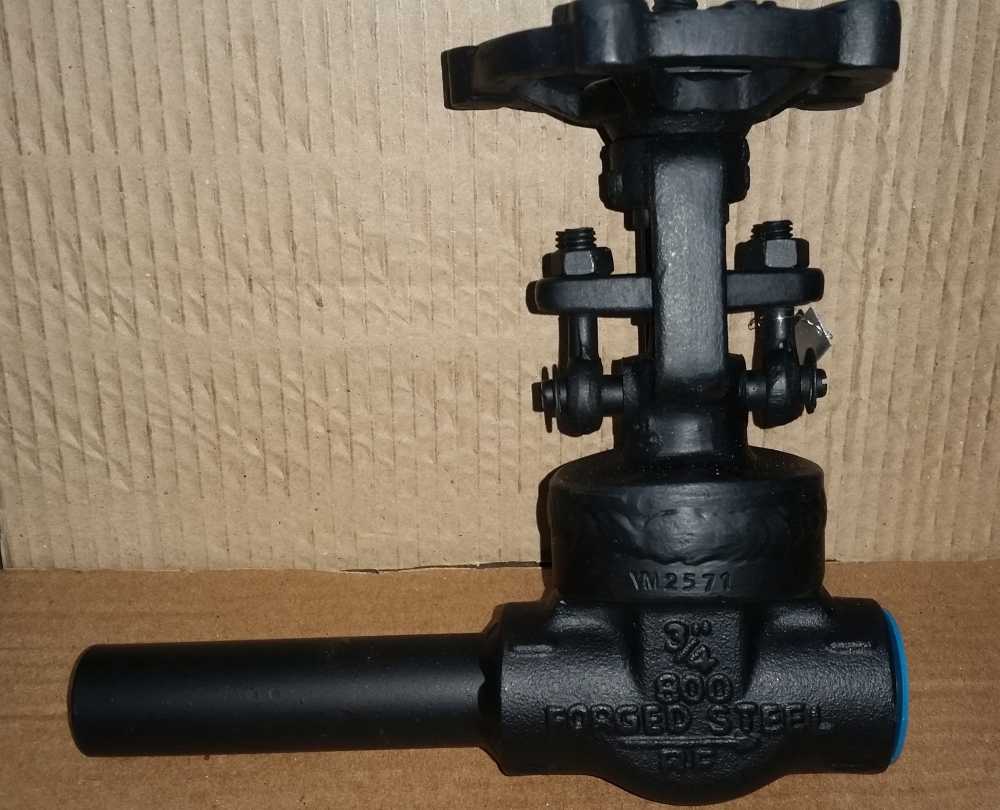

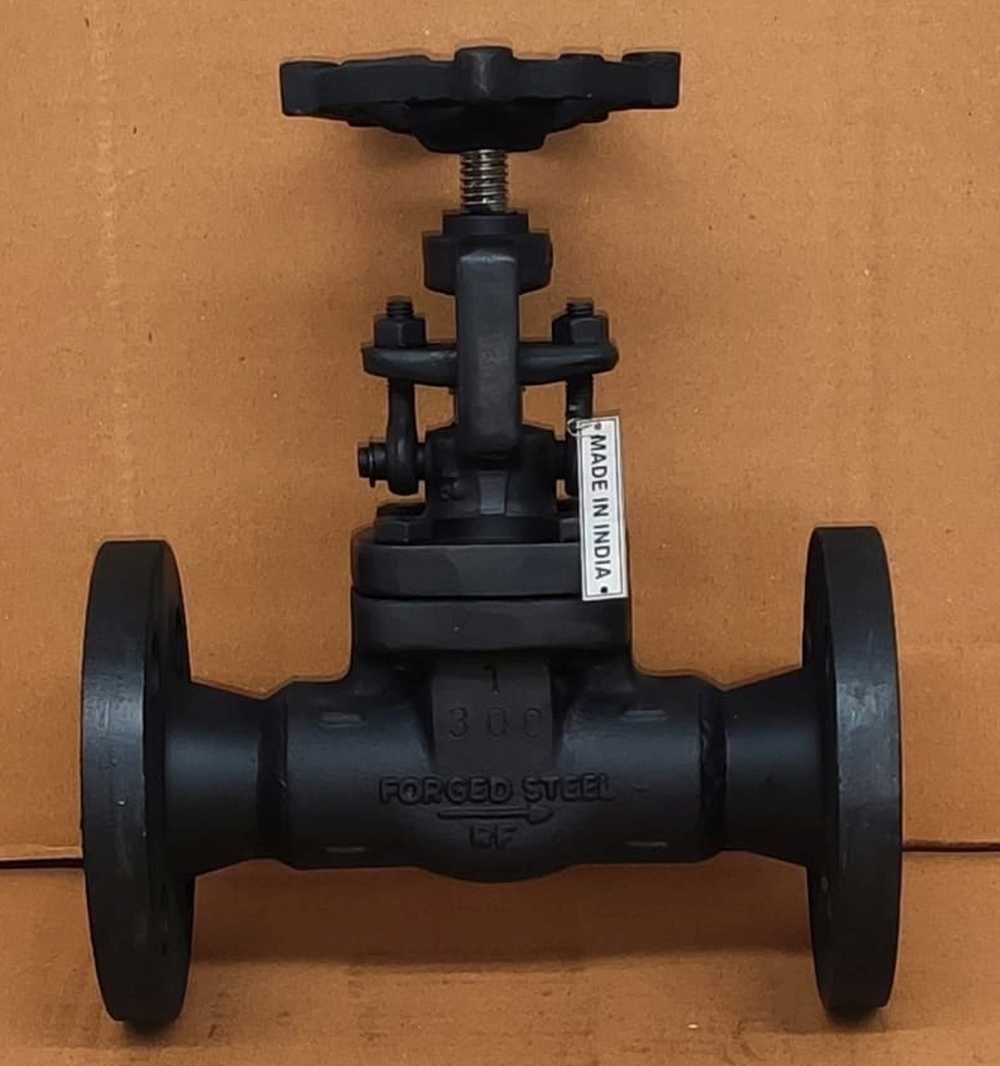

End Connections: Flanged To Asme B16.5, Screwed Ends To Asme B1.20.1, Socket Weld Ends To Asme B 16.11, But Weld Asme B16.25. Extended Pipe Nipple Weld
Construction :
Bore : Full Bore , Reduce Bore

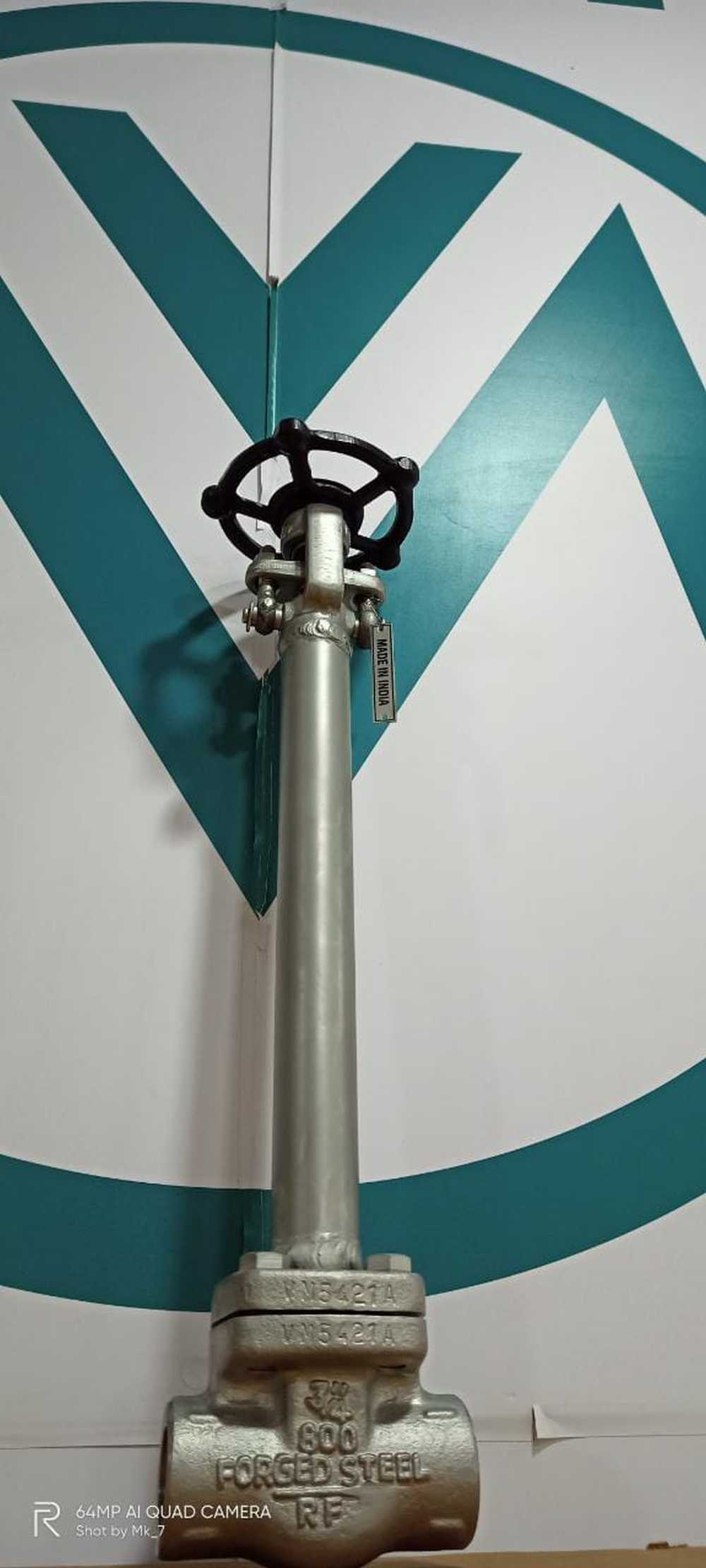

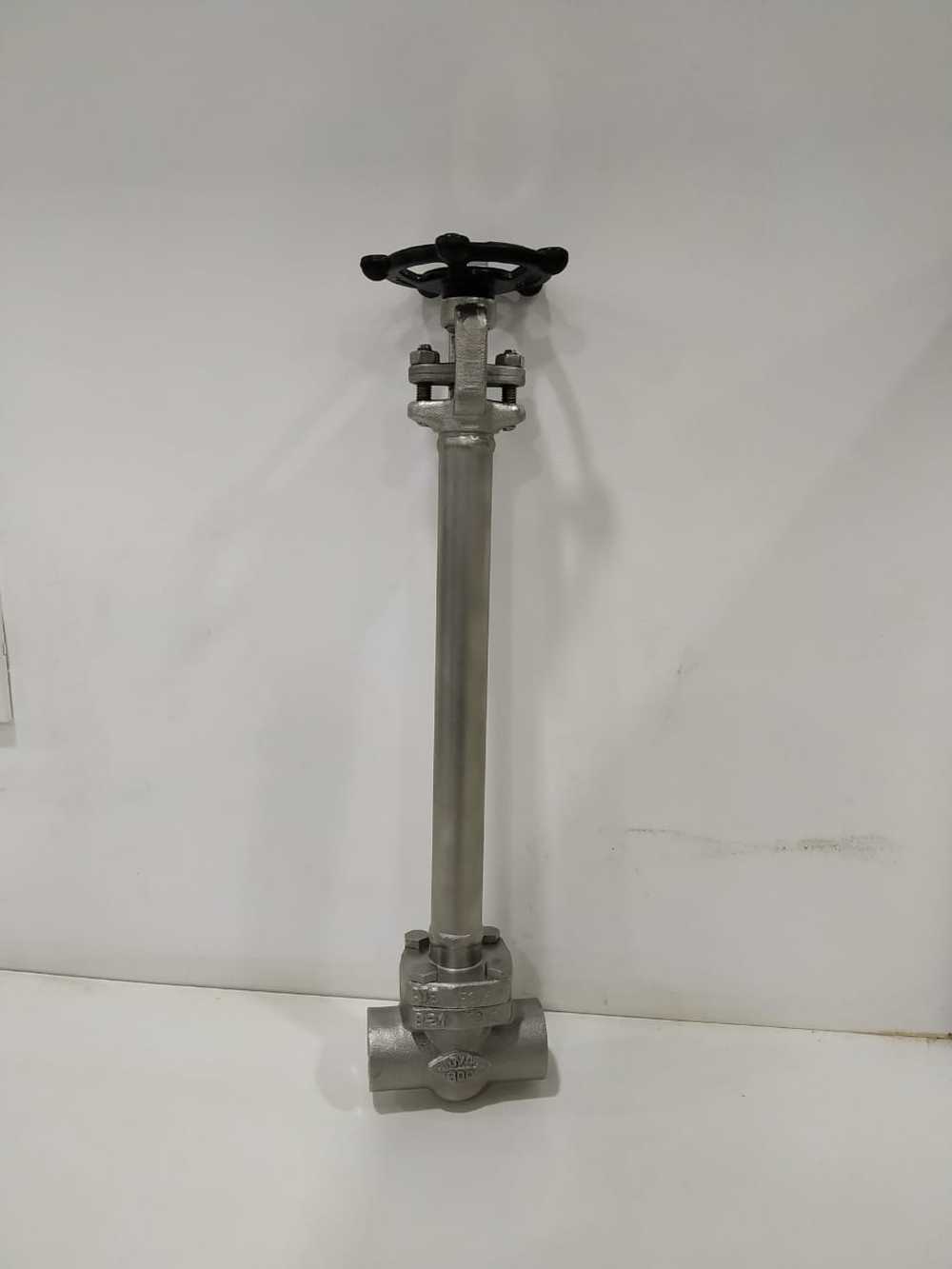

Bonnet : OS & Y- Type Bolted Bonnet, OS & Y- Type Welded Bonnet, Extended Bonnet /Stem, Y- Type Bonnet
Operation : Hand Wheel Operated, Hand Wheel With Locking Arrangement
